Discs
Overview of available patterns for discs.
The shape and pattern of disc you need will vary depending on the machine that you will be using the disc with. For example, machines with a built-in suction system will need discs with perforations – the pattern of perforations varies depending on the brand.
The tables below provide an overview of available shapes and patterns.
As well as the styles shown, Cibo can develop new shapes very quickly – just ask!
Shape
| Diameter
| Perforations
| Code
|
 | ⌀ 81
| 6
| SP11
|
 | ⌀ 115
| 8
| SP01
|
 | ⌀ 125
| 8
| SP02
|
 | ⌀ 125
| 8+1
| SP12
|
 | ⌀ 125
| 8+4+1
| SP14
|
 | ⌀ 150
| 6
| SP03
|
 | ⌀ 150
| 6+1
| SP13
|
 | ⌀ 150
| 8l
| SP04
|
 | ⌀ 150
| 8E
| SP10
|
 | ⌀ 150
| 8E+1
| SP05
|
 | ⌀ 150
| 8E+1+6
| SP06
|
 | ⌀ 150
| 8E+1+8l
| SP07
|
 | ⌀ 150
| 9
| SP08
|
 | ⌀ 200
| 8
| SP09
|
Shape
| Diameter
| Code
|
 | ⌀ 115/75
| S131
|
 | ⌀ 125/75
| S133
|
Shape
| Diameter
| Code
|
 | ⌀ 19
| S001
|
| ⌀ 22
| S002
|
| ⌀ 25
| S003
|
| ⌀ 45
| S004
|
| ⌀ 50
| S005
|
| ⌀ 60
| S006
|
| ⌀ 75
| S007
|
| ⌀ 100
| S100
|
| ⌀ 115
| S104
|
| ⌀ 125
| S105
|
| ⌀ 150
| S106
|
| ⌀ 175
| S114
|
| ⌀ 178
| S118
|
| ⌀ 200
| S200
|
| ⌀ 215
| S209
|
| ⌀ 225
| S204
|
| ⌀ 230
| S205
|
| ⌀ 250
| S206
|
| ⌀ 300
| S300
|
| ⌀ 330
| S330
|
| ⌀ 350
| S306
|
| ⌀ 381
| S311
|
| ⌀ 400
| S400
|
| ⌀ 430
| S415
|
| ⌀ 500
| S500
|
| ⌀ 600
| S600
|
| ⌀ 770
| S770
|
| ⌀ 810
| S810
|
Shape
| Diameter
| Perforations
| Code
|

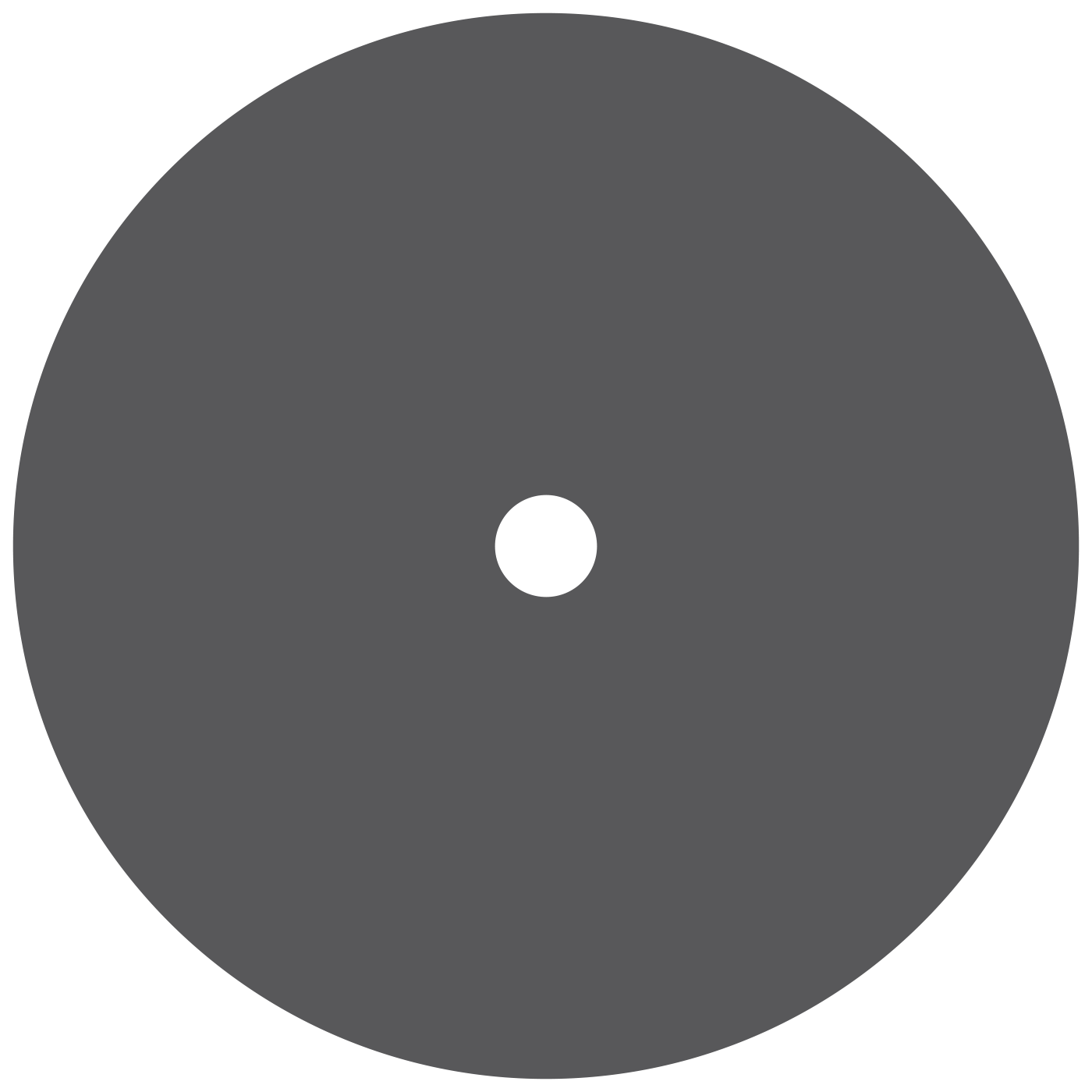

 | ⌀ 95
| 10
| S008
|
| ⌀ 100
| 10
| S128
|
| ⌀ 100
| 15
| S101
|
| ⌀ 100
| 30
| S102
|
| ⌀ 105
| 6
| S103
|
| ⌀ 115
| 10
| S107
|
| ⌀ 115
| 50
| S129
|
| ⌀ 125
| 10
| S109
|
| ⌀ 140
| 35
| S122
|
| ⌀ 150
| 22
| S108
|
| ⌀ 150
| 22,2
| S127
|
| ⌀ 150
| 50
| S126
|
| ⌀ 160
| 40
| S110
|
| ⌀ 180
| 10
| S130
|
| ⌀ 200
| 25
| S203
|
| ⌀ 250
| 25
| S207
|
| ⌀ 300
| 25
| S302
|
| ⌀ 350
| 8
| S303
|
| ⌀ 350
| 40
| S304
|

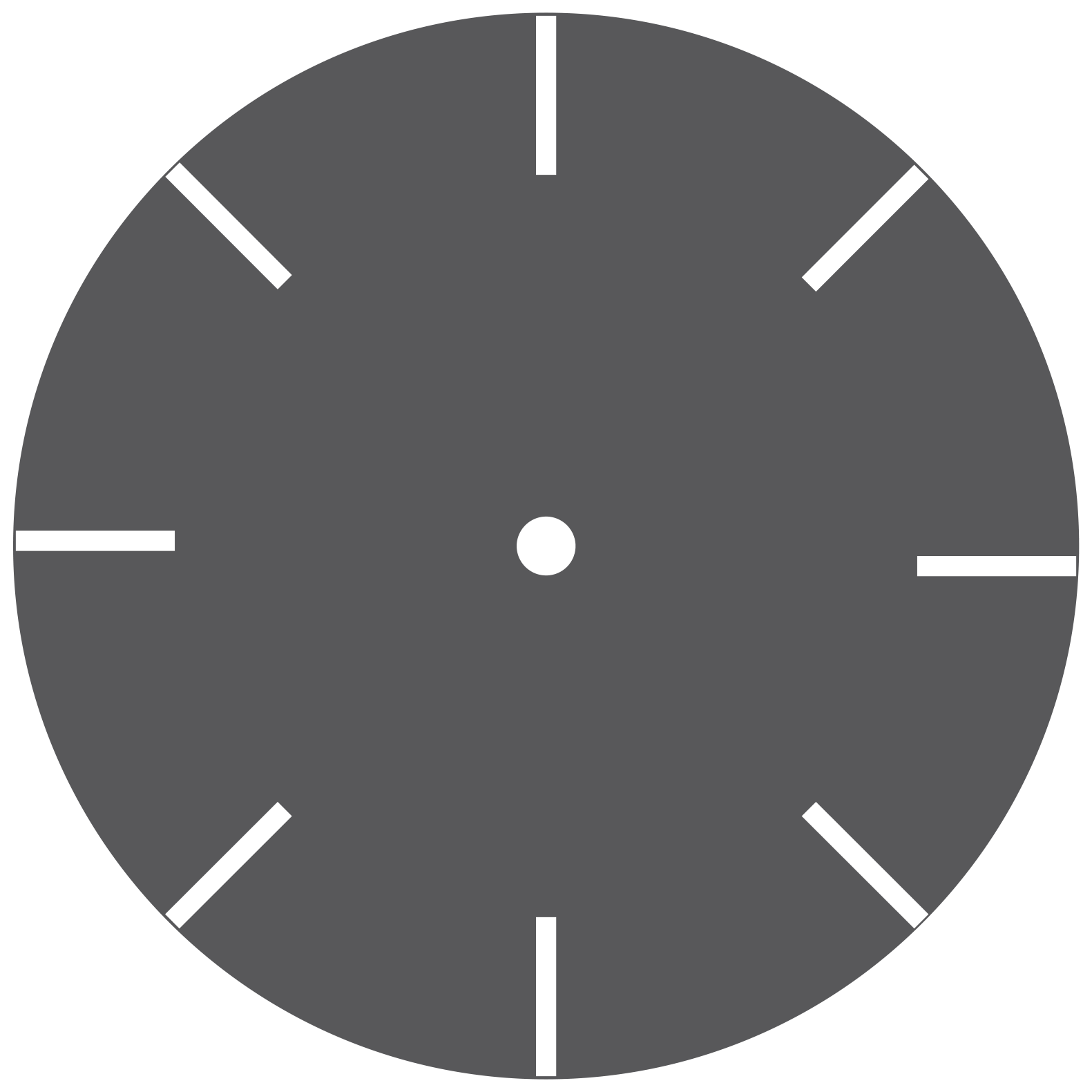

 | ⌀ 200
| 10
| S201
|
 | ⌀ 200
| 25+2
| S202
|

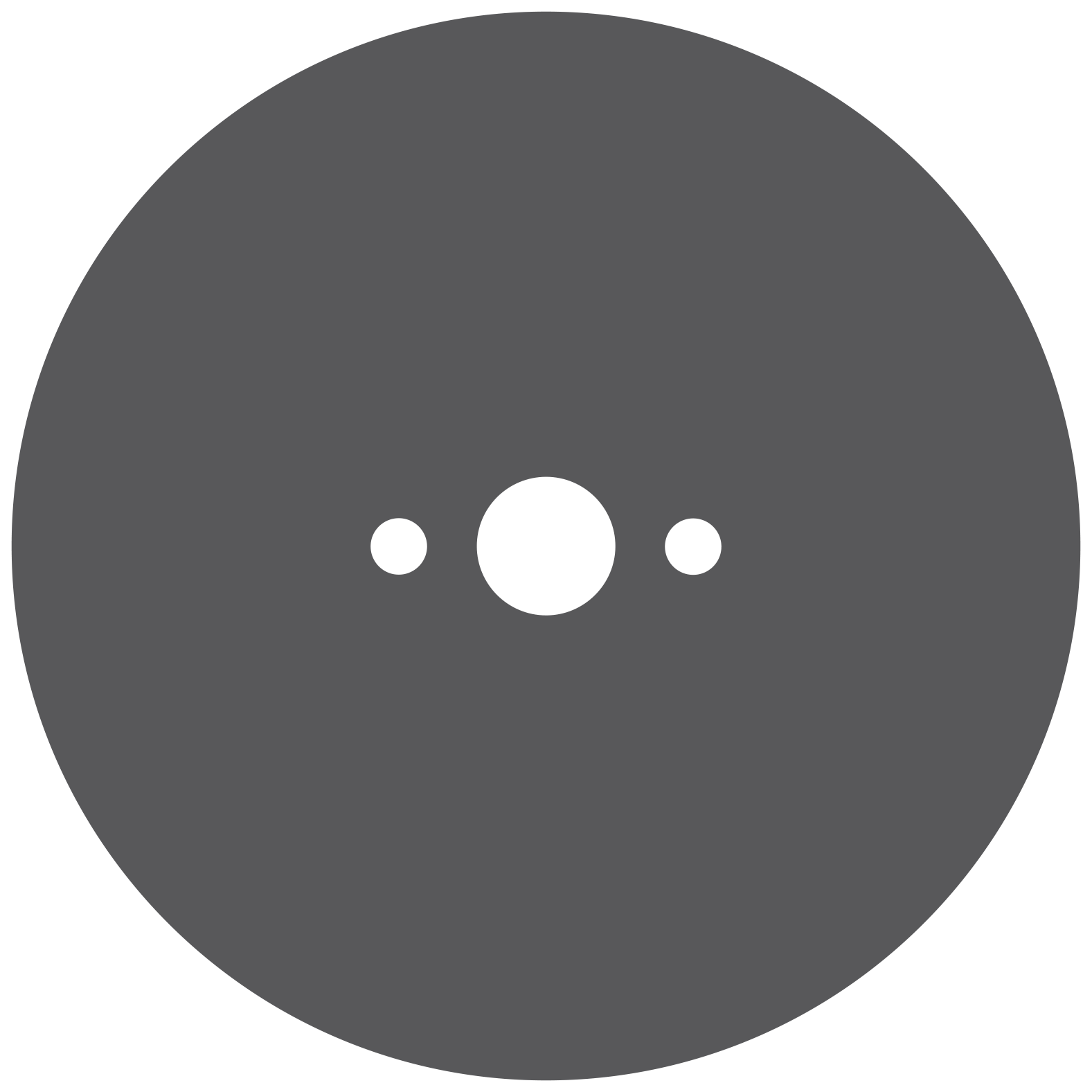

| ⌀ 300
| 25+2
| S307
|

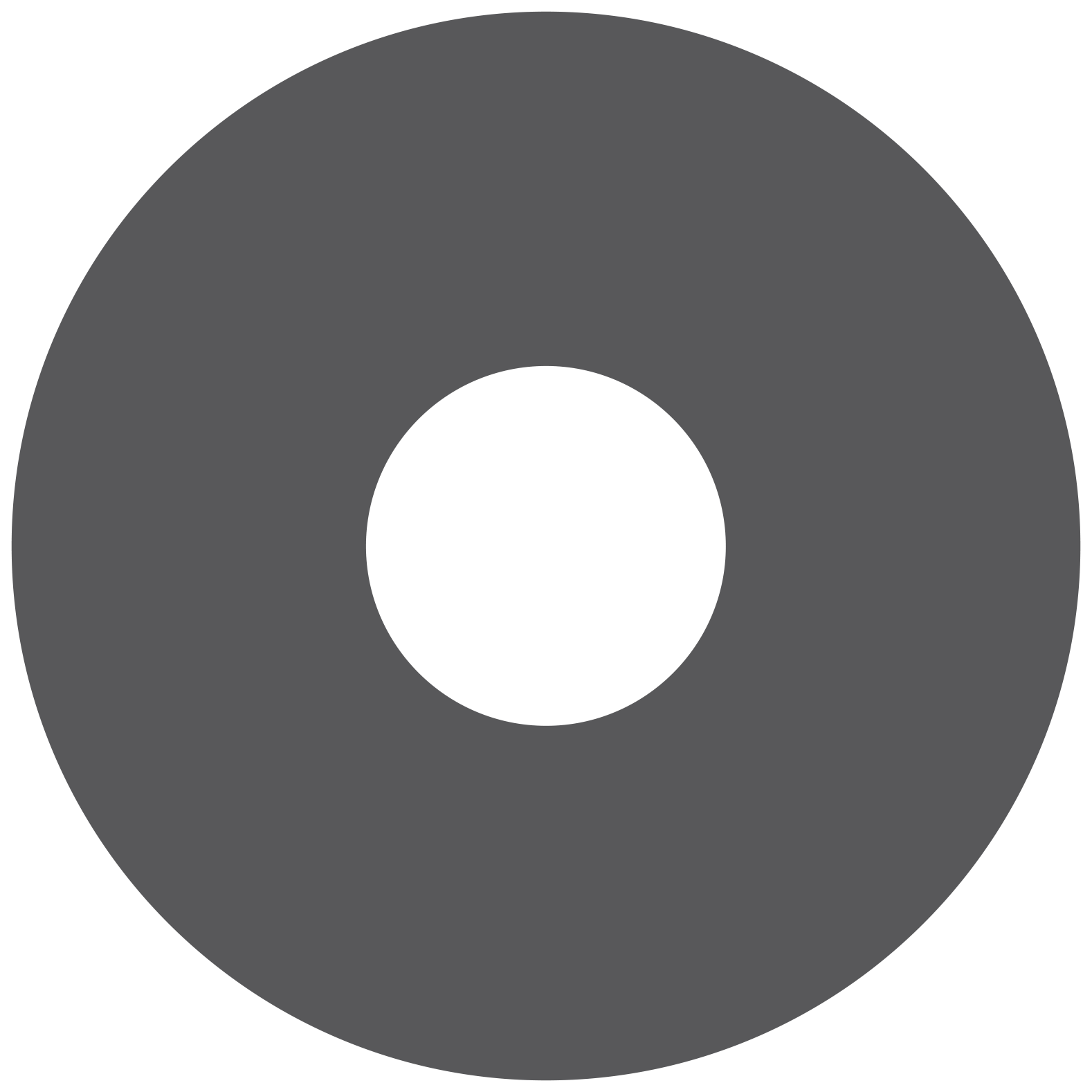

 | ⌀ 381
| 127
| S305
|
Shape
| Diameter
| Perforations
| Code
|

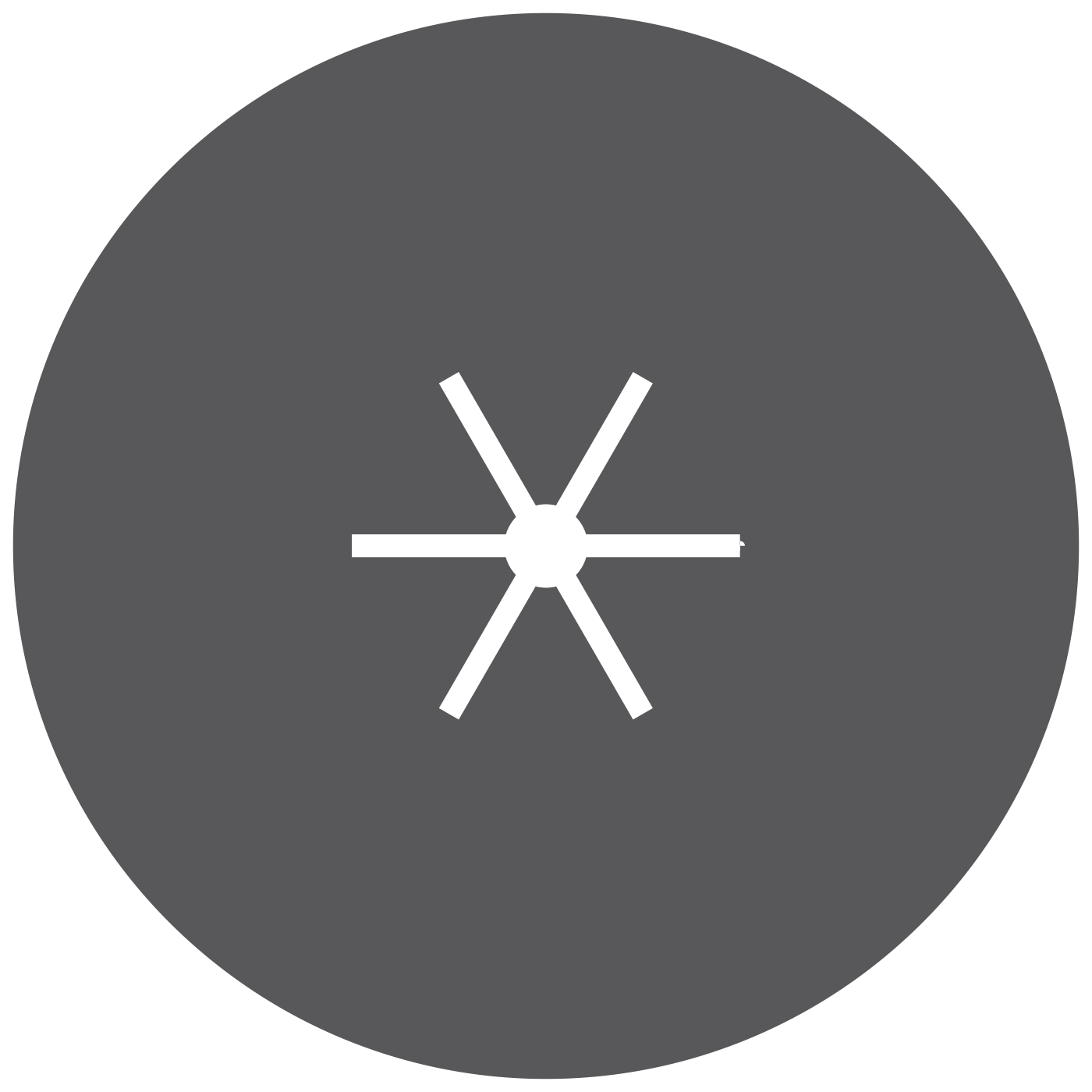

 | ⌀ 150
| 10
| S111
|
| ⌀ 178
| 8
| S115
|
| ⌀ 178
| 14
| S116
|

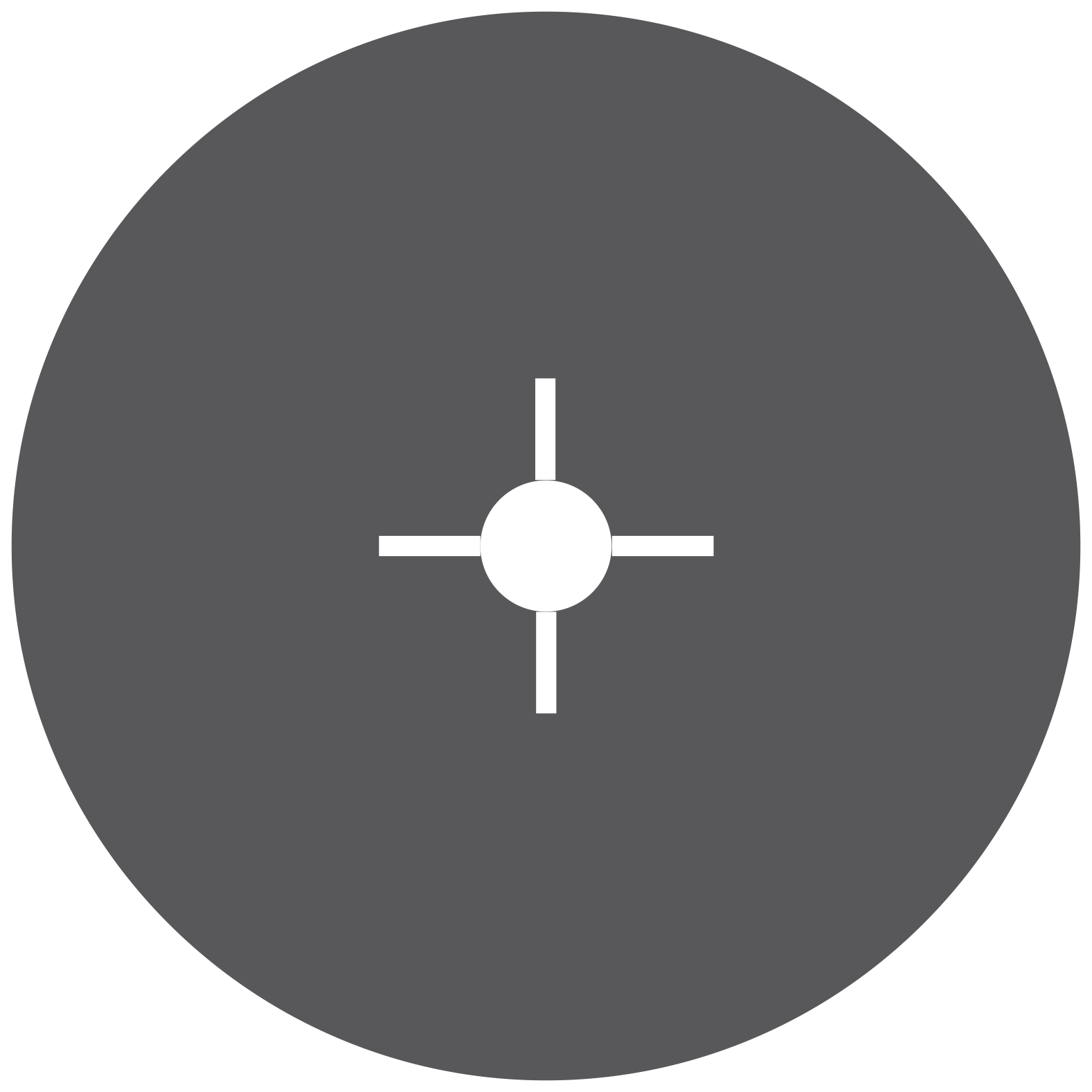

 | ⌀ 115
| 22
| S120
|
| ⌀ 125
| 22
| S121
|
| ⌀ 150
| 25
| S112
|

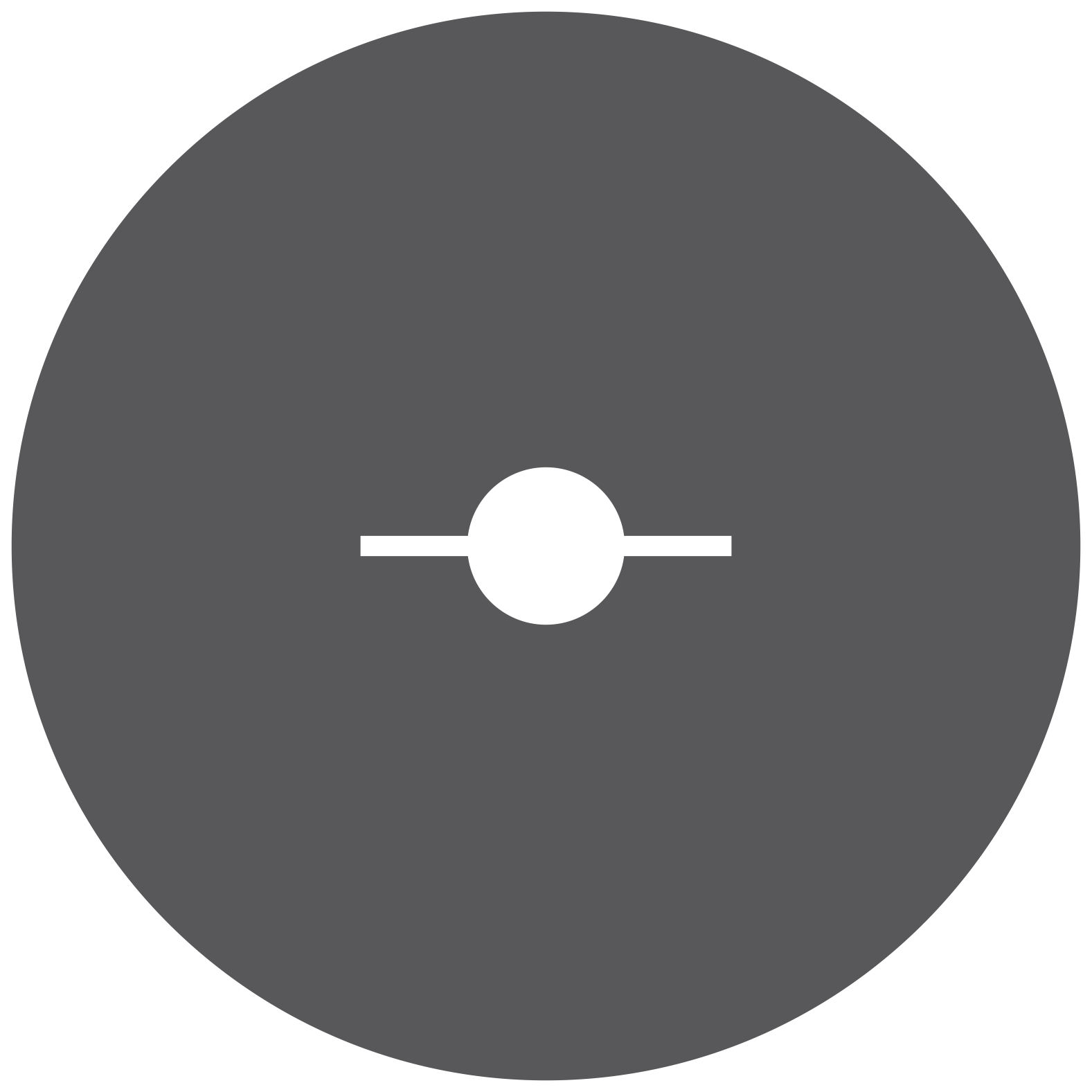

 | ⌀ 175
| 25
| S113
|

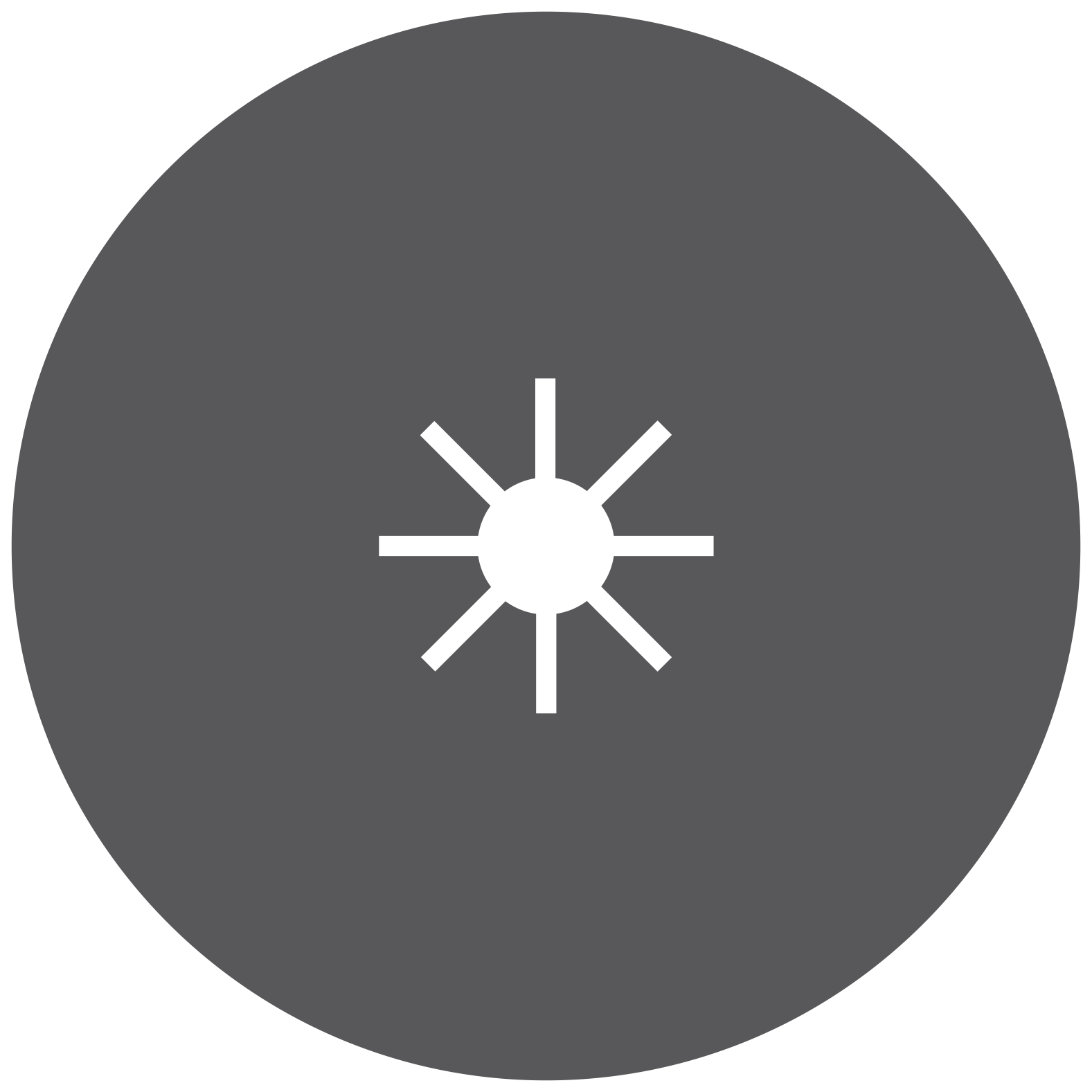

 | ⌀ 178
| 22
| S117
|
| ⌀ 175
| 22
| S119
|
| ⌀ 115
| 22
| S123
|
| ⌀ 150
| 30
| S124
|
| ⌀ 178
| 22
| S125
|

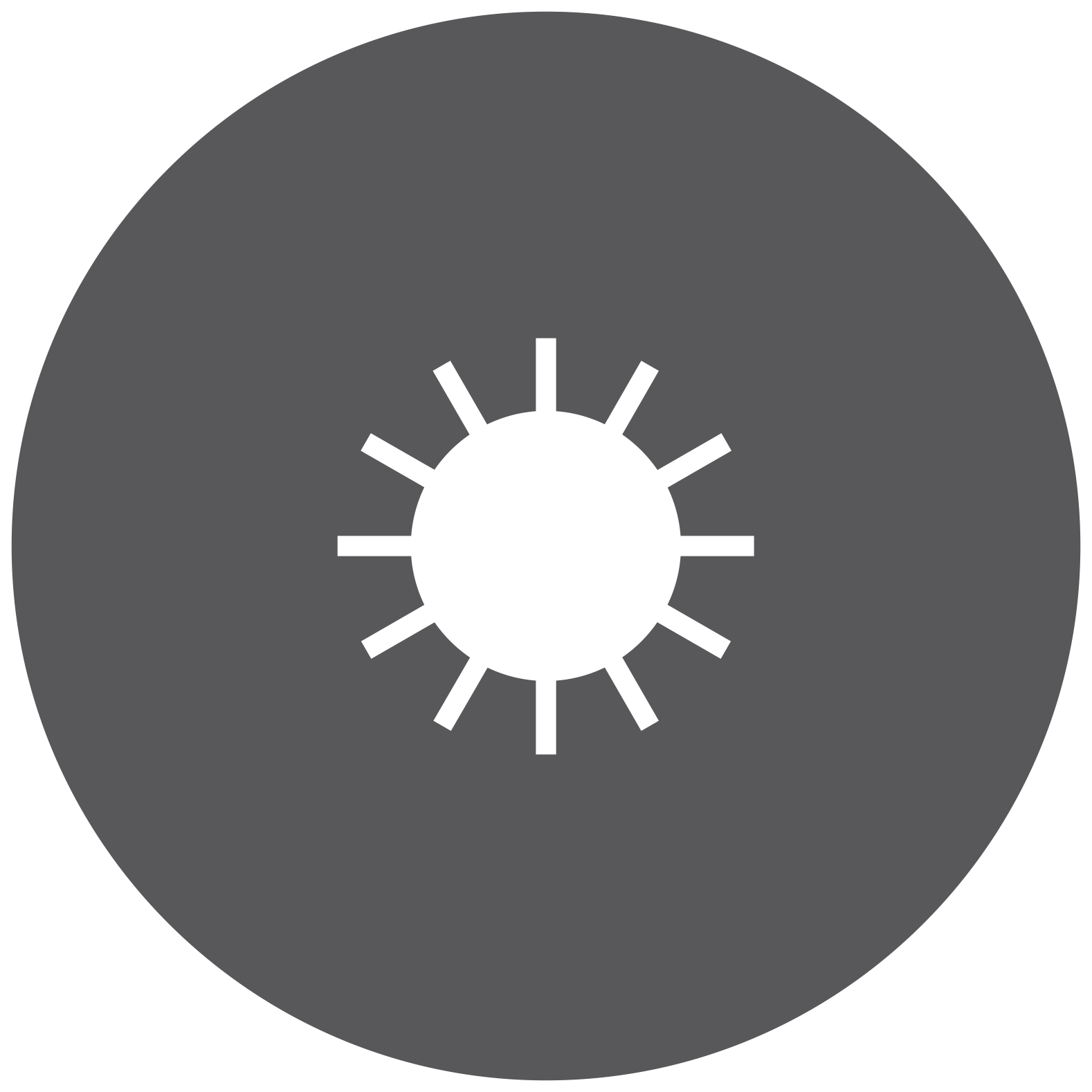

 | ⌀ 406
| 101
| S401
|
If you need other dimensions, parameters or grain, just get in touch with Cibo.
