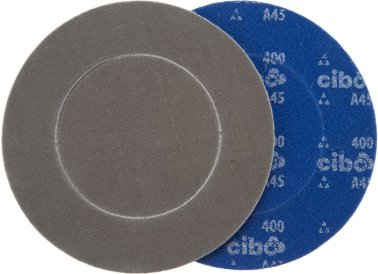

237GR - Cloth grip discs
The cloth grip disc 237GR is part of the Trizact™ family (3M). Trizact™ is an innovative abrasive material featuring precisely calibrated aluminium oxide grains arranged in a pyramid structure. These three-dimensional abrasive grains of equal height provide fast stock removal and a uniform, reproducible finish without deep scratches or the risk of burrs.The 237GR is specially developed for difficult-to-machine materials such as stainless steel and exotic alloys used in the aviation, aerospace and medical sectors.
Aluminium
High quality alloys
Non-ferrous
Stainless steel
Steel
Plastics and rubber
Pre-polishing
Finishing light weld seams
Grinding down pointed welds, unevenness and damage

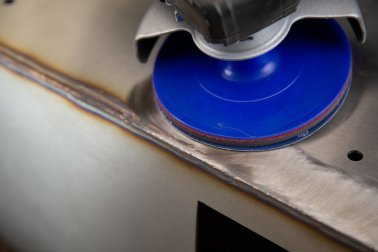

Removing and refining weld seams
Sanding
To be fitted on:
Motor with flexible shaft
Air pressure tool
Angle grinder
Call outs:
The 237GR is not suited for use on titanium.
Always use in combination with a heat-resistant back-up pad and foam interface.
S104 = ø115 mm: back-up pad 115VELVZ + foam interface 115IT
S105 = ø125 mm: back-up pad 125VELVZ + foam interface 125IT
S131 = ø115/75 mm: back-up pad 115VELVZ/75VELVZ + foam interface 115IT/75IT
S133 = ø125/75 mm: back-up pad 125VELVZ/75VELVZ + foam interface 125IT/75IT
Properties:
- Perfectly calibrated abrasive grit in pyramid shape.
- Pyramid consists of compressed abrasive grains
- Three-dimensional sanding grains of exactly the same height
Tip:
The 237GR is not suitable for working on titanium.
Specifications
A160 (P120)-A100 (P220)-A80 (P240)-A65 (P280)-A45 (P400)-A30 (P600)-A16 (P1400)-A6 (P2000)
A/O Trizact®
No
No
X
Katoen
Voordelen
Laat toe om materialen op een
eenvoudige
en
consistente
manier af te werken.
Perfecte, consistente en reproduceerbare
afwerking
van het werkstuk.
Heeft geen invloed op de
geometrie
van het werkstuk: geen slijpfouten.
Koeler schuren dan traditionele schuurmiddelen: minder kans op
verkleuring
.
Zeer vergevingsgezind
: een fout wordt niet meteen afgestraft.
Ook geschikt voor materialen die extreme hitte genereren zoals
titanium
en
kobaltlegeringen
.
Veilig voor roestvrij staal (ijzervrij).
VOC-vrij.
Extra information:
Prices will be available once logged on.
| Diameter (mm) | Perforations | Shape | Grit | Code | Stock | Pieces/package | Price/package | Total n° of units |
|---|---|---|---|---|---|---|---|---|
| 115 | - | S104 | 6 | 237GR/6/S104 | - | - | - | 0 |
| 115 | - | S104 | 16 | 237GR/16/S104 | - | - | - | 0 |
| 115 | - | S104 | 30 | 237GR/30/S104 | - | - | - | 0 |
| 115 | - | S104 | 45 | 237GR/45/S104 | - | - | - | 0 |
| 115 | - | S104 | 65 | 237GR/65/S104 | - | - | - | 0 |
| 115 | - | S104 | 100 | 237GR/100/S104 | - | - | - | 0 |
| 115 | - | S104 | 160 | 237GR/160/S104 | - | - | - | 0 |
| 125 | - | S105 | 6 | 237GR/6/S105 | - | - | - | 0 |
| 125 | - | S105 | 16 | 237GR/16/S105 | - | - | - | 0 |
| 125 | - | S105 | 30 | 237GR/30/S105 | - | - | - | 0 |
| 125 | - | S105 | 45 | 237GR/45/S105 | - | - | - | 0 |
| 125 | - | S105 | 65 | 237GR/65/S105 | - | - | - | 0 |
| 125 | - | S105 | 100 | 237GR/100/S105 | - | - | - | 0 |
| 125 | - | S105 | 160 | 237GR/160/S105 | - | - | - | 0 |
| 115/75 | - | S131 | 6 | 237GR/6/S131 | - | - | - | 0 |
| 115/75 | - | S131 | 16 | 237GR/16/S131 | - | - | - | 0 |
| 115/75 | - | S131 | 30 | 237GR/30/S131 | - | - | - | 0 |
| 115/75 | - | S131 | 45 | 237GR/45/S131 | - | - | - | 0 |
| 115/75 | - | S131 | 65 | 237GR/65/S131 | - | - | - | 0 |
| 115/75 | - | S131 | 100 | 237GR/100/S131 | - | - | - | 0 |
| 115/75 | - | S131 | 160 | 237GR/160/S131 | - | - | - | 0 |
| 125/75 | - | S133 | 6 | 237GR/6/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 16 | 237GR/16/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 30 | 237GR/30/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 45 | 237GR/45/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 65 | 237GR/65/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 80 | 237GR/80/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 100 | 237GR/100/S133 | - | - | - | 0 |
| 125/75 | - | S133 | 160 | 237GR/160/S133 | - | - | - | 0 |
